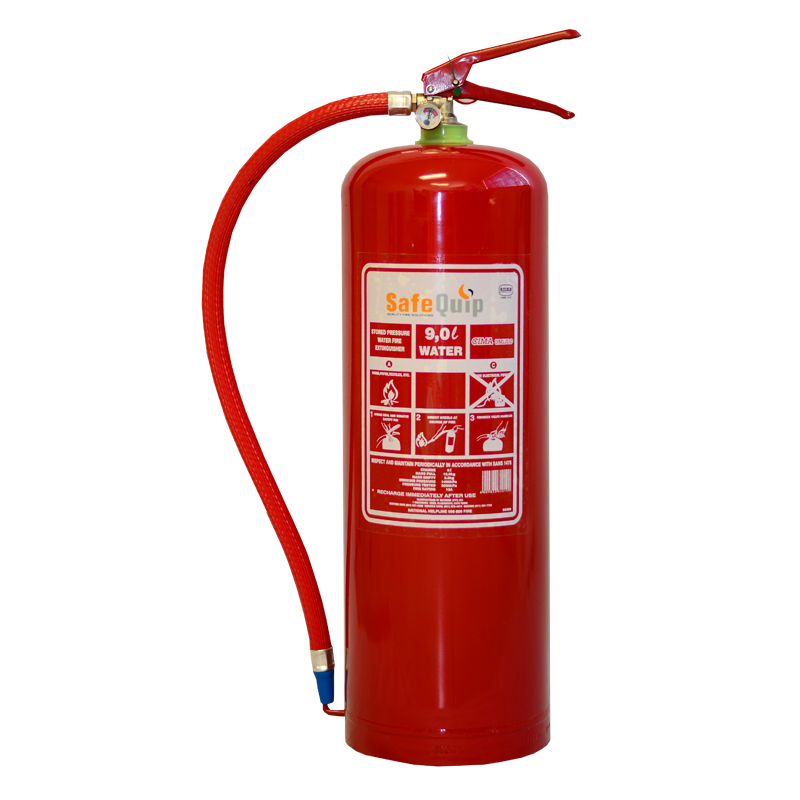

9l Water Fire Extinguisher
Water Fire Extinguishers are suitable for class A fires caused by the combustion of solid materials, mainly of organic origin, such as wood, paper, straw, textiles, coal etc.
Not for use on electrical equipment or electrical fires.
Description
Water Fire Extinguishers are suitable for class A fires caused by the combustion of solid materials, mainly of organic origin, such as: wood, paper, straw, textiles, coal etc.
Not for use on electrical equipment or electrical fires.
| Specifications | |
|---|---|
| Height | 580mm |
| Diameter | 175mm |
| Mass Empty | 3.9kg |
| Mass Full | 12.9kg |
| Discharge | >12sec |
| Effective Range | 3-12m |
| Discharge Nozzle | Hose & Horn |
| Working Temperature | -15/+60°C |
| Working Pressure | 1400kPa |
| Test Pressure | >2100kPa |
| Burst Pressure | >5500kPa |
| Safety Device | ±2200kPa |
| Neck Ring Thread | M30 x 1.5 |
| Pressure Indicator | Ø23 M10 x 1.0 |
| Outlet Thread | G ¼” x 19 |
| Syphon Tube | M16 x 1.5 |
| Specifications | |
|---|---|
| Construction | Deep draw type mild steel cylinder. (Welded neck and base) Valve |
| Brass Spec | CZ 122 Die Forging Brass (HPB59-1) |
| Body | Forged & Nickel plated |
| Discharge Hose | Hose EN694 PVC 545mm & 580mm overall length |
| Cylinder Finish | Red epoxy powder coated |
| Inner Lining | PPA coated |
